This project represents a vision of the air transport of the future. The concept of intercity mobility for the year 2030 in the form of a hybrid aircraft with the ability of vertical take-off and landing (VTOL) is independent of airport infrastructure.
It combines the comfort and accessibility of a helicopter with the speed and safety of an airplane. The transport capacity is five people and one hundred kilograms of luggage on board.

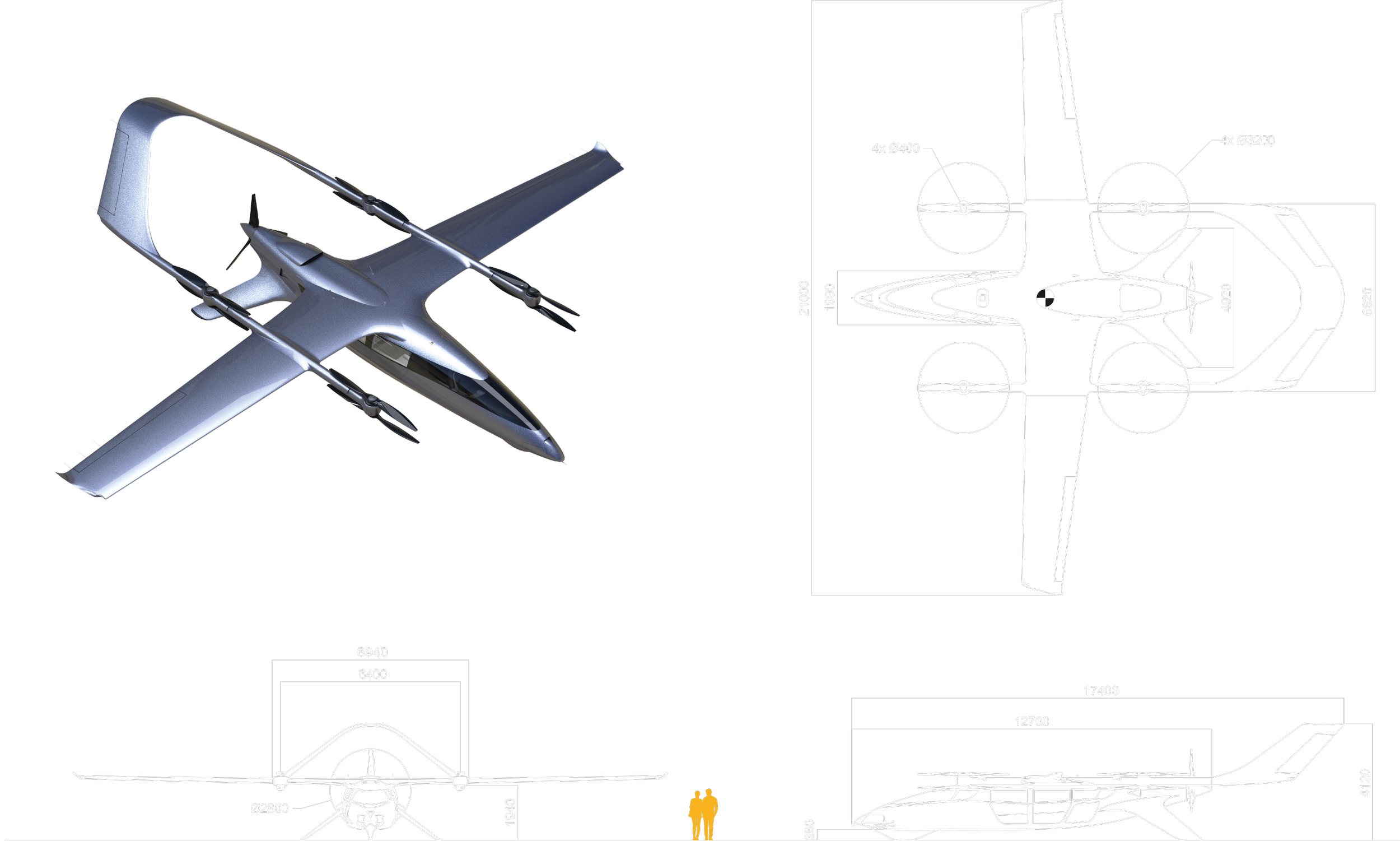

High-wing plane in lift+cruise configuration with boom mounted inverted V-tail surfaces has a maximum take-off weight of 4000 kg, a cruise speed of 400 km/h and a range of 1000 km.
Horizontal flight is provided by a turboprop engine with a pusher three-bladed propeller. For take-off and landing eight electric motors and two-bladed propellers in a coaxial configuration is intended. The interior for four passengers facing each other in pairs provides generous space, comfort and the possibility of communication.

Diploma thesis presentation:

1/14th scale prototype test flight:

Prototype ZERO test flight:
